Gulf Turbo Services (GTS) has a fully equipped technical workshop spanning 1 520 m², enabling us to service our Customers across numerous industries including industrial power generation, oil & gas production and refining & industrial manufacturing. Our workshop includes a vast array of machinery specifically designed to support our Customers with all their Parts, Service, Maintenance & 24/7 Breakdown needs. Whether GTS needs to service our Customers high speed rotating equipment such as steam turbines, turbo compressors, expanders, fans, blowers, other rotating equipment or large sea water pumps, we have a range of Major Tool Machines as well as Smaller Tool Equipment for the job.
GTS prides ourselves not only in our equipment but in our skilled technicians behind our incredible machinery, who ensure every job is delivered with a focused approach on quality, safety and environmental management. This is achieved through partnering with our Customer’s teams to achieve productivity and efficiency improvements through our on-site service delivery and workshop services, while lowering costs without compromising on quality and safety.
Our range of equipment includes:
Major Tool Machines
AlFlak 300 Laser Welding Machine – Precision Rotor Repairs
At Gulf Turbo Services, we are committed to delivering cutting-edge solutions for precision welding. As a first of its kind in Qatar, we have introduced the AlFlak 300 Laser Welding Machine, a robust and highly adaptable system designed for high-performance welding applications across industries.
Key Features & Benefits
- High-Power Laser Welding – The AlFlak 300 offers 300W of laser power, ensuring deep penetration and strong welds.
- Programmable & Ergonomic – Featuring WINLaser software and a precision joystick, it allows for automated and manual welding, ensuring efficiency and accuracy.
- Versatile Applications – Ideal for repairing journal areas, seal areas and thrust collars on high speed rotating equipment with no heat affected zone.
- Seamless Welding Performance – Capable of producing continuous weld seams up to 320mm, reducing repositioning time and increasing productivity.
Why Choose Gulf Turbo Services?
At Gulf Turbo Services, we integrate state-of-the-art laser welding technology to provide superior local repair for turbo machinery in the Middle East. Whether you need precision repairs, modifications, or high-strength welding, the AlFlak 300 ensures exceptional results with minimal downtime.
Contact us today to learn how the AlFlak 300 Laser Welding Machine can enhance your operations!
Major Tool Machines

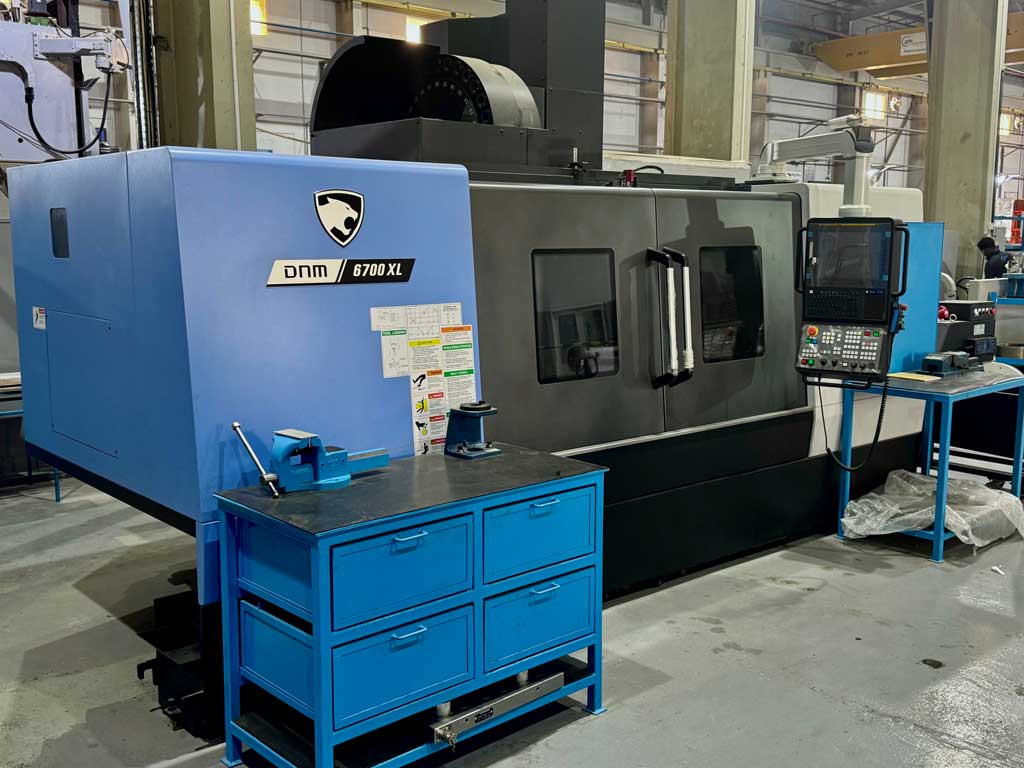

DNM 6700XL 4-Axis CNC Machine – Precision Engineering at Its Best
At Gulf Turbo Services, we are dedicated to delivering high-performance machining solutions with cutting-edge technology. The new DNM 6700XL Vertical Machining Center is a powerful 4-axis CNC machine designed for precision, efficiency, and versatility in industrial applications.
Key Features & Benefits
- Extended X-Axis Travel – With an impressive 2100mm X-axis travel, the DNM 6700XL accommodates large workpieces with ease.
- High-Speed Spindle – Equipped with an 8000 RPM spindle, ensuring smooth and accurate machining.
- Advanced modern Fanuc Control Systems – offers seamless integration into diverse manufacturing requirements.
- Superior Rigidity & Stability – Designed with roller guideways and thermal compensation, ensuring high-precision machining.
- Optimized Productivity – Features fast tool change times and enhanced feed rates, reducing cycle times and increasing efficiency.
Why Choose Gulf Turbo Services?
At Gulf Turbo Services, we integrate state-of-the-art CNC machining technology to provide exceptional precision and reliability. Whether you need complex component fabrication, high-speed milling, or intricate detailing, the DNM 6700XL ensures unmatched performance.
Contact us today to discover how the DNM 6700XL Vertical Machining Center can meet your repair/manufacturing requirements!
Major Tool Machines

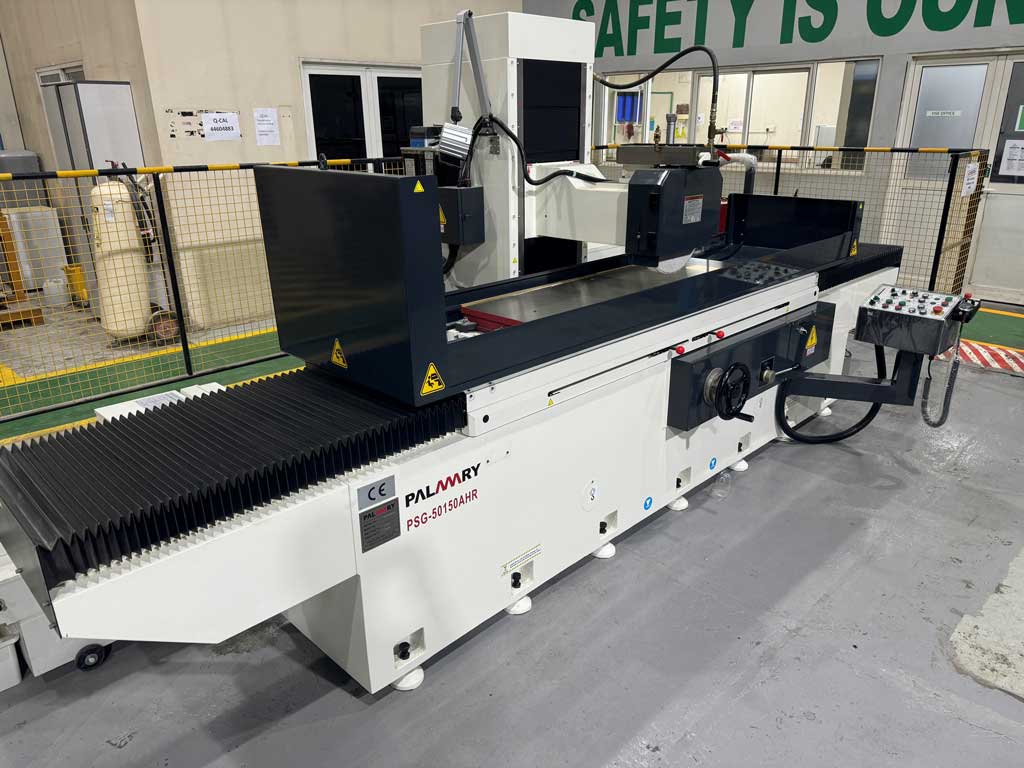

PSG-50150AHR Surface Grinder – Precision Grinding for Superior Performance
At Gulf Turbo Services, we are committed to delivering high-precision machining solutions with advanced technology. The new PSG-50150AHR Surface Grinder is engineered for exceptional accuracy, durability, and efficiency, making it the ideal choice for precision grinding applications.
Key Features & Benefits
- High-Precision Grinding – Designed for ultra-smooth surface finishes, ensuring tight tolerances for critical components.
- Robust Construction – Built with rigid cast iron and reinforced structural design, eliminating internal stress for maximum stability.
- Advanced Automation – Equipped with automatic downfeed and NC functions, optimizing grinding efficiency and reducing manual intervention.
- Versatile Applications – Ideal for large steam turbine and compressor shims, including tapered shims, ensuring consistent and reliable results.
- Optimized Cooling & Filtration – Features integrated coolant systems and dust suction mechanisms, maintaining clean and precise operations.
Why Choose Gulf Turbo Services?
At Gulf Turbo Services, we integrate state-of-the-art surface grinding technology to provide exceptional precision and reliability. Whether you need high-accuracy finishing, component restoration, or specialized grinding, the PSG-50150AHR is the largest surface grinder installed in Qatar in 2024 and erensures superior results with minimal downtime.
Contact us today to discover how the PSG-50150AHR Surface Grinder can enhance your machining capabilities!
Big Balancing Machine – 20 Ton
We have a 20 Ton Big Balancing Machine within our workshop which is used to ensure precise balancing of both rigid and flexible rotors and is easily adapted to our Customers service requirements.
| Manufacture Type: | Schenck/HM 60 U/BU |
| Maximum Distance Between Bearing Supports: | 10 000 mm |
| Maximum Swing: | 3 000 mm |
| Maximum Load: | 20 000 kgs |
| Bearing Journal Ø: | 50 – 200 mm / 200 – 400 mm |
| Serial #: | 1CHRID 60 |
Major Tool Machines
Small Balancing Machine – 3 Ton
Our 3 Ton Small Balance Machine is suitable for balancing cylindrical rotors with integral shaft journals as well as for balancing disc shaped rotors on balancing arbors. Permanent calibration, ergonomic design and a logical operating sequence facilitate operation. The modular design principle and a wide range of accessories makes this machine highly flexible.
| Manufacture Type: | Schenck/HM 40 U/BU |
| Maximum Distance Between Bearing Supports: | 4 000 mm |
| Maximum Swing: | 1 600 mm |
| Maximum Load: | 3 000 kg |
| Bearing Journal Ø: | 15 – 120 mm |
| Balancing Speed Universal Drive: | 60 – 1120 rpm |
| Belt Drive: | 30 – 3640 rpm |
| Residual Unbalance: | 0,5 g-mm |
| Serial #: | RMHF 0300 |
Major Tool Machines

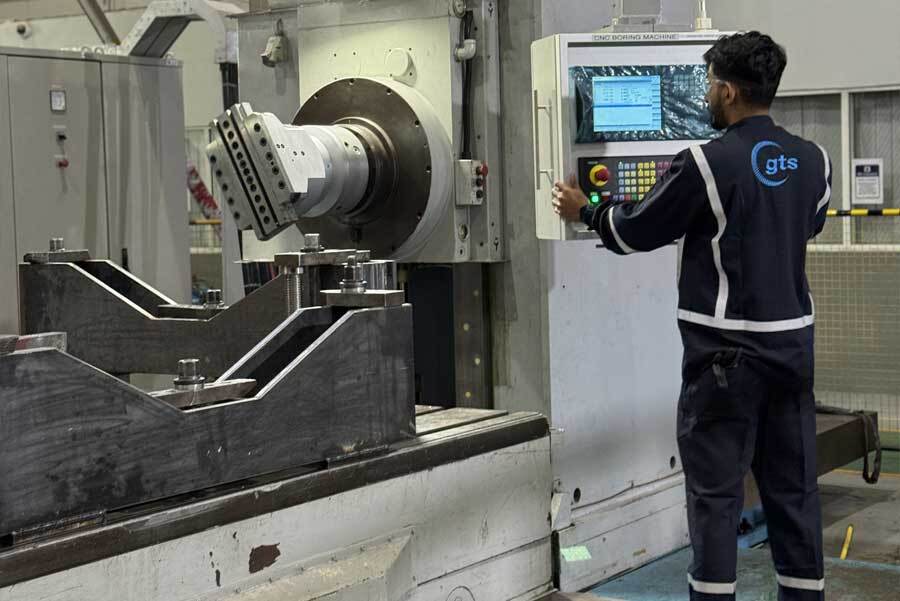

Boring Mill (Horizontal)
Our Horizontal Boring Mill machines are typically used to enlarge holes in various kinds of materials using a single-point cutting tool. Our Customers can enjoy piece of mind with their equipment resting on the table of the machine while the boring bar rotates around a horizontal axis in a safe manner.
| Manufacture Type: | Schiess 130 T 25 |
| Spindle Ø: | 130 mm |
| Table Size: | 2 000 mm x 2 000 mm |
| X Axis: | 3 200 mm |
| Y Axis: | 2 000 mm |
| Maximum Table Load: | 25 000 kg |
Products & Services
Lathe Machines
We have various types, makes and models of lathes within our workshop enabling our technical team to rotate any piece of equipment whether for cutting, sanding, knurling, drilling, deformation, facing or turning, we have the right lathe for our Customers job.
Lathe Machines

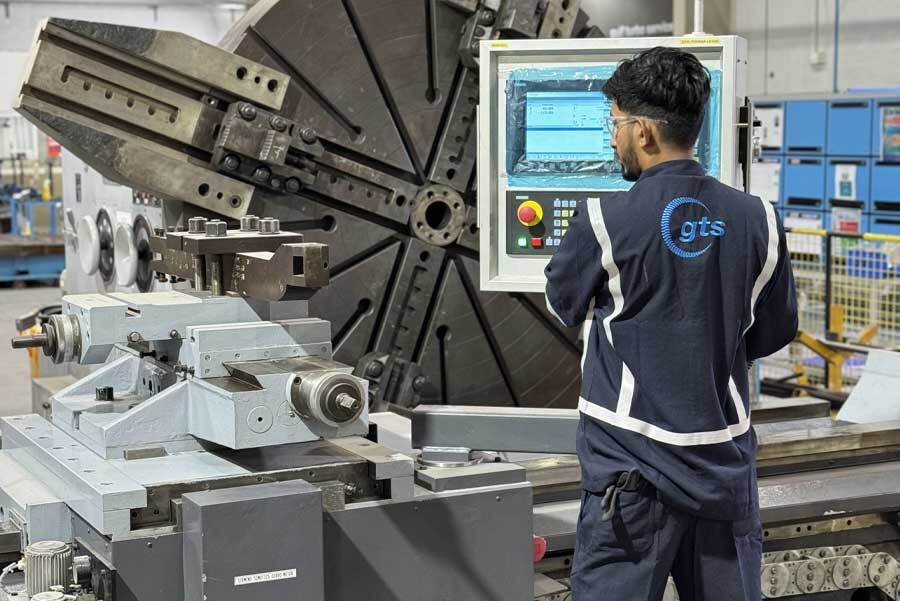

Poreba – PL – 42 – 480 = 30 Ton
| Manufacturer Type: | Poreba TZG-250B/6M |
| Machine Type: | Face Lathe |
| Swing Over Floor Plate: | 2 500 mm |
| Swing in Gap: | 3 200 mm |
| Gap Length: | 500 mm |
| Turning Length: | 6 000 mm |
| Maximum Swing Over Bed: | 1 600 mm |
| Maximum Swing Over Carriage: | 1 250 mm |
| Serial #: | 1101003 |
Lathe Machines
Optimum – D320 X 920
| Manufacturer Type: | Optimum Lathe D320 X 920 |
| Manufacturer Country: | Germany |
| Centre Height: | 160 mm |
| Centre Width: | 920 mm |
| Turning Maximum Diameter: | 320 mm |
| Turning Diameter Overbed: | 190 mm |
| Spindle Hole: | 38 mm |
| Serial #: | 831595 |
Lathe Machines

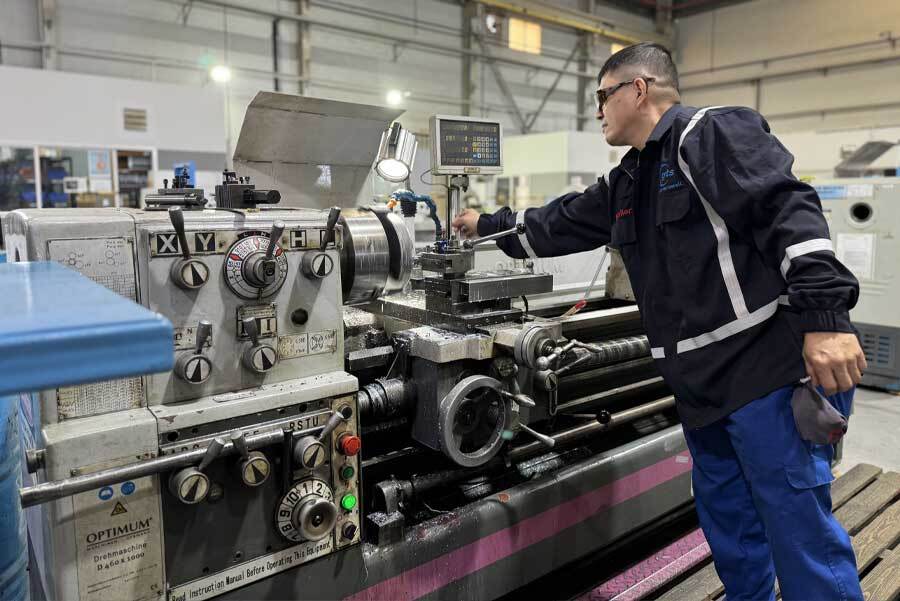

Optimum – D460 X 2000
| Manufacturer Type: | Optimum Lathe D460 X 2000 |
| Manufacturer Country: | Germany |
| Centre Height: | 230 mm |
| Centre Width: | 2 000 mm |
| Turning Maximum Diameter: | 690 mm |
| Turning Diameter Overbed: | 465 mm |
| Spindle Hole: | 58 mm |
| Serial #: | 810919 |
Lathe Machines
Poreba – TRP – 110 – Medium
| Manufacturer Type: | Poreba TRP – 110 |
| Manufacturer Country: | Poland |
| Turning Maximum Diameter: | 1 300 mm |
| Turning Diameter Over Slide: | 650 mm |
| Centre Distance: | 4 000 mm |
| Spindle Hole: | 105 mm |
| Serial #: | 1.05676.05 |
Lathe Machines
Poreba – TPK – 90A1 – Medium
| Manufacturer Type: | Poreba TPK – 90A1 |
| Manufacturer Country: | Poland |
| Centre Height: | 465 mm |
| Turning Maximum Diameter: | 1 200 mm |
| Turning Diameter Overbed: | 920 mm |
| Centre Distance: | 4 000 mm |
| Spindle Hole: | 105 mm |
| Serial #: | 7402-02-18050-01 |
Products & Services
Smaller Tool Equipment
In addition to our Major Tool Machines, GTS has an extensive range of Smaller Tool Equipment, specifically aimed at better servicing our Customers equipment, whether in the industrial power generation, oil & gas production or refining & industrial manufacturing industries.
Smaller Tool Equipment

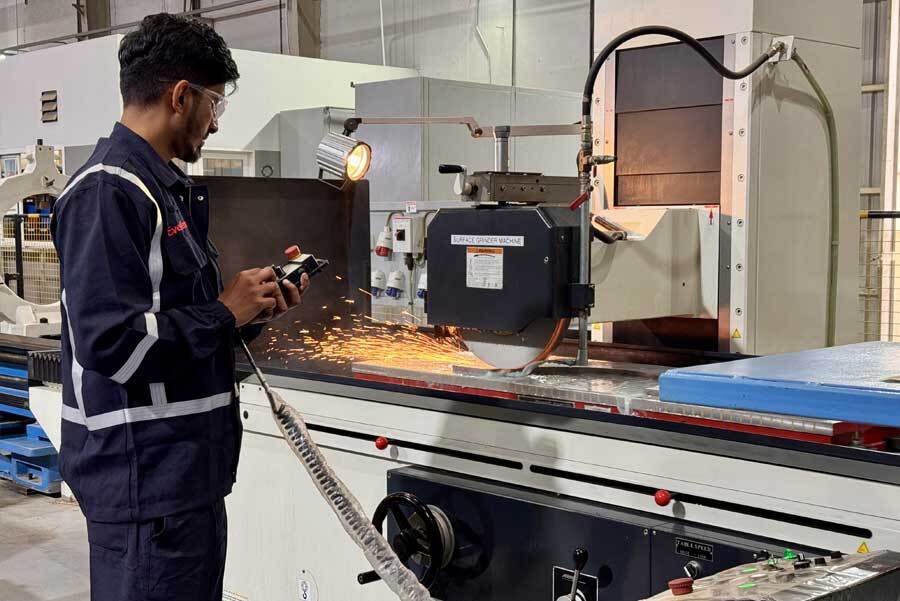

Surface Grinding Machine
| Manufacturer Type: | Bernstein |
| Manufacturer Country: | Germany |
| Table Size: | 1 250 mm x 320 mm |
| Grinding Wheel: | 400 mm |
| Pathways: | X 1 250 mm |
| Y: | 320 mm |
| Z: | 400 mm |
| Serial #: | 902117029D-A |
Smaller Tool Equipment
Air Compressor – Small
| Manufacturer Type: | Schneider Druck Luft Universa |
| Manufacturer Country: | Germany |
| Tank Volume: | 90 L |
| Pressure: | 10 BAR/145 PSI |
| HP: | 4 |
| Output: | 3 KWh |
| Frequency: | 50 Hz |
| Voltage: | 400 V |
| Pole: | 3 |
| A: | 6.6 |
| Serial #: | 9090943858 |
Smaller Tool Equipment
Milling Machine
| Manufacturer Type | Reckermann Kombi 900 Pony Combined Horizontal & Vertical |
| Milling Machine with Program Control | |
| Manufacturer Country: | Germany |
| Maximum Spindle Speed: | 2 800 rpm |
| Table Size: | 300 mm x 1 300 mm |
| Table Travel: | Longitudinal Stroke X Axis 800 mm |
| Vertical Stroke Y Axis: | 300 mm |
| Cross Stroke Z Axis: | 250 mm |
| Serial #: | 6794 |
Smaller Tool Equipment
Radial Drilling Machine
| Manufacturer Type: | Heckert BR 40 x 1250 |
| Manufacturer Country: | Germany |
| Type of Control: | Conventional |
| Drilling Capacity in Steel: | 45 mm Diameter |
| Throat: | 1 250 mm |
| Maximum Work Piece Height: | 1 100 mm |
| Swivel Range: | 360 degrees |
| 745 mm height adjustment | |
| Base Plate Surface Area: | 1 450 mm x 920 mm |
| Spindle Ø: | 90 mm Intake / MK 5 |
| Bore Spindle Stroke: | 55 mm |
| Serial #: | 773035 |
Smaller Tool Equipment
Grinding Machine
| Manufacturer Type: | VEB Elbtalwert Set RA2 x 200 |
| Manufacturer Country: | Germany |
| Maximum Diameter of Grinding Wheel: | 200 mm |
| Grinding Wheel Width: | 32 mm |
| Manually Feed: | 2 Stuck |
| Weight: | 550 kg |
| Total Power Requirement: | 0.9 KWh |
| Serial #: | 629197 |
Smaller Tool Equipment
Sand Blasting Machine – Small
| Working Chamber: | 1 350 mm x 1 100 mm x 1 100 mm |
| Blasting Chamber: | Dust tight negative pressure cabinet in sturdy steel sheet construction |
| Doors: | Two side doors which close with dust tight seal, double walled sound-insulating foam closable, with electrical safety cut-off |
| Serial #: | 39787 |
Smaller Tool Equipment
Sand Blasting Machine – Large
| Working Chamber: | 5 m x 8.5 m |
|
Construction: |
Dedicated blast room with external sand blasting dust extraction system filtering and collecting spent blast material. |
| Doors: |
Two full size sliding doors with dust seal and sound insulation. |
|
Trolley access: |
Heavy duty trolley for large components. |
